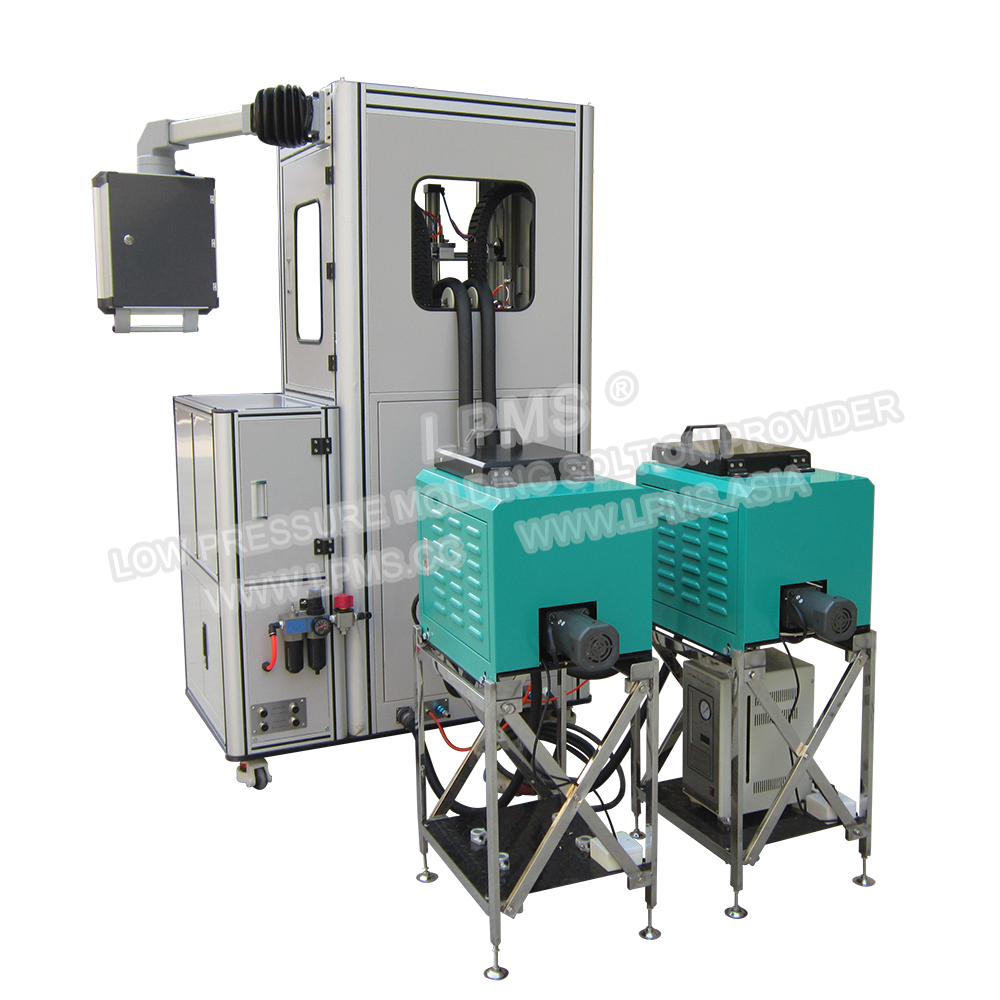

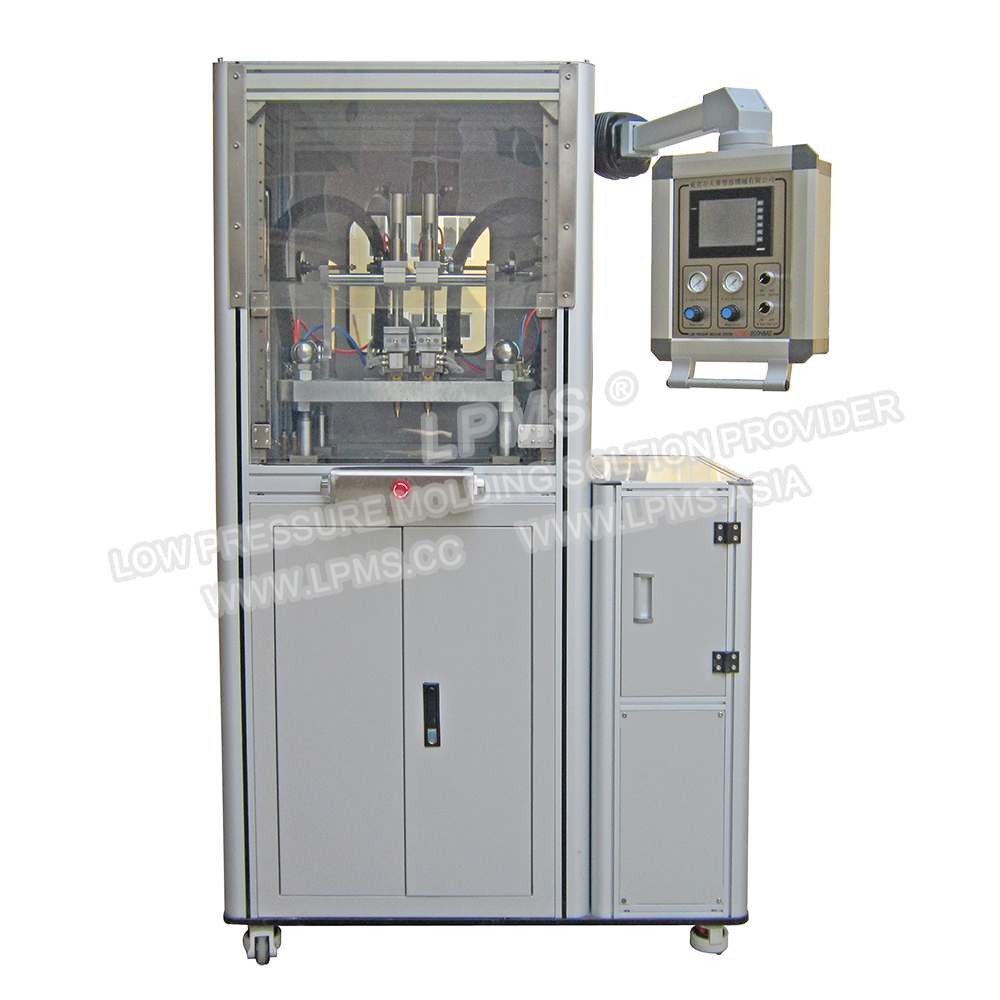

Vertical Injection Single Working Station Dual Guns with Dual Separate Tanks

LPMS 800HMG

Vertical Injection Single Working Station Dual Guns with Dual Separate Tanks

l Intuitive touch screen operation, which is on the rotary operator.

l Air over oil cylinder gives large clamping force for larger part.

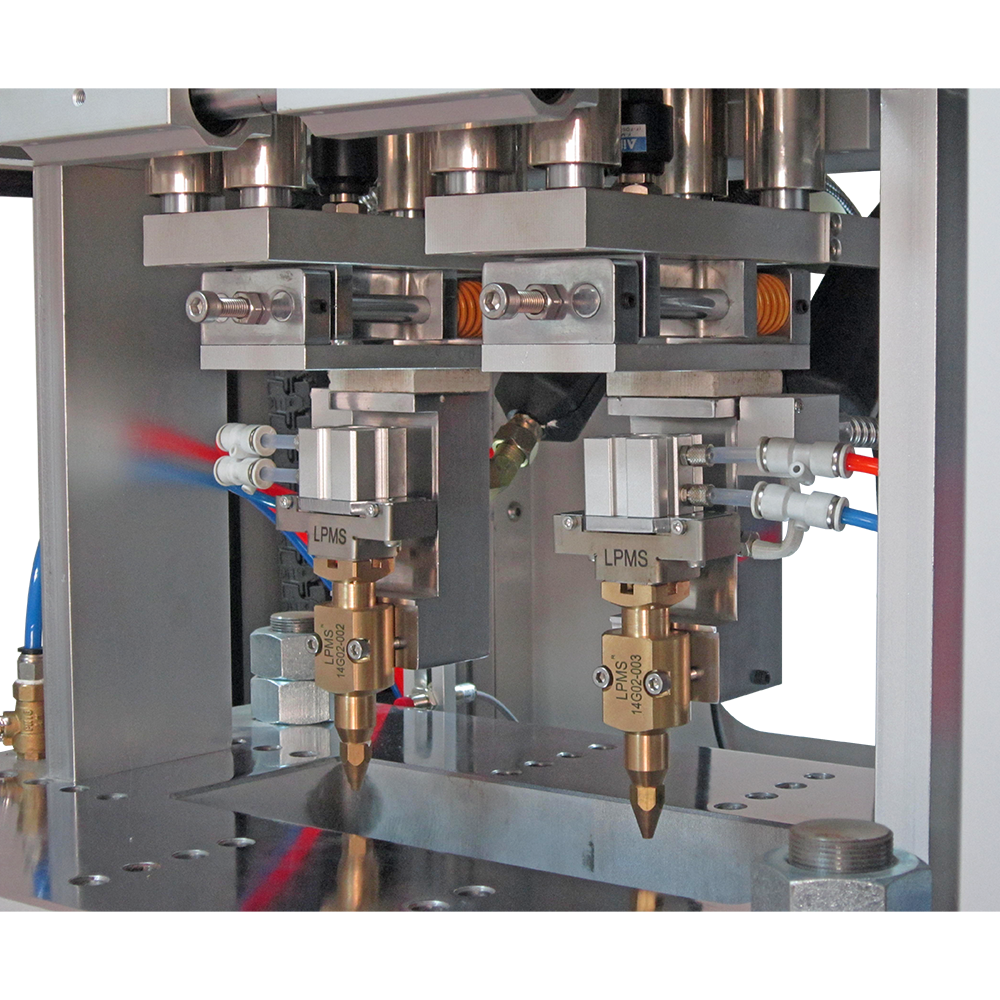

l Two independent injection guns.

l Dual 7 liter melting tanks. Run different molding materials at the same time.

l LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.

l The gear pump is made of hard-wearing material，which is stable，injection volume accuracy ±0.1g，maximum shot size is 5g/s.

l Injection pressure range 1~50kg, which is controlled by pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.

l Linear scale it’s precise for mold clamping, does not need to adjust the reed switch position.

l Six thermal control zones for precise melt control.

l Light curtain and dual palm buttons for operator safety.

Application

LPMS^?machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

The benefit of vertical injection is that when smaller parts allow the cavity to be split into two or four cavities. This allows shorter runners and higher output per cycle. It’s suitable for multiple cavity mold for cable, wire harness, LED, etc.

Specification

Machine Size / Weight	1245 mm x 945 mm x 1980 mm / 660 kg 49.01 in x 37.20 in x 77.95 in / 1454 lbs
Footprint	1245 mm x 1700 mm \| 49.01 in x 66.93 in
Working Station Height	1120 mm \| 44.09 in
Packing Size / Weight	1330 mm x 960 mm x 2130 mm / 700 kg 52.36 in x 37.80 in x 83.86 in / 1543 lbs
Melting Tank	Melt on demand 7 liter x 2
Auto Feeding System	Optional
Gun Model & Tip	LPMS-G08 x 2 / 36.4°
Gun distance	100mm-200mm \| 3.94 in – 7.88 in
Ejectors distance	50 mm \| 1.97 in
Heated Hose	1.6 m x 2
Electricity	200-240VAC / 1 Phase / 50Hz
Temperature Control Zones	6
Temperature Range	Ambient up to 250°C / 485°F
Max .Power	10 Kw
Min. Air Pressure	0.5MPa \| 73 Psi
Air Consumption	0.1 m³/min \| 3.5 ft³/min
Clamping	Air over oil cylinder
Clamping Force	Max. 5 Tons ( Optional 10 Tons )
Clamping Stroke	150 mm \| 5.91 in
Control System	7 ”HMI , PLC controlled
Safety Protection	See-thru clamp shield, emergency stop button
Max. Mold Set Size	400 mm x 300 mm x 150 mm 15.75 in x 11.81 in x 5.90 in
Min. Mold Set Size	200 mm x 150 mm x150 mm 7.87 in x 5.90 in x 5.90 in
